AluPure Aluminium Systems — Casement 46, presented by Inspire Windoors.

Categories: ,

(0 reviews)

Brand and presenter

  • Brand: AluPure Aluminium Systems.

  • Presented by: Inspire Windoors.

System type

  • Casement window and door platform with dedicated door and window frames, optimized for outward opening operation.

Track size

  • Door: 74 mm.

  • Window: 42 mm.

Sash dimensions

  • Handle: 112 mm / 50 mm.

  • Top/Bottom: 72 W / 92 D.

  • Intersection: 60 W / 92 D.

Frame capacity

  • Maximum height: 9 ft.

  • Maximum width: 4 ft (per shutter indicated).

Glass compatibility

  • Minimum glass thickness: 5 mm.

  • Maximum glass thickness: 24 mm.

Glass options

  • Toughened glass: Heat-treated safety glass for higher impact resistance and safer break pattern in case of failure, suitable for high-traffic openings and tall panels.

  • Security glass: Laminated safety glass with interlayer for enhanced burglary resistance, improved sound dampening, and safer retention if cracked.

  • DGU glass: Double-glazed insulated unit for energy efficiency, better thermal comfort, and reduced condensation, ideal for west-facing and noise-exposed elevations.

  • Security DGU glass: Laminated insulated glazing combining burglary resistance with thermal and acoustic performance for premium façades and ground-floor sliders.


Design and benefits

  • Robust 46 mm profile enhances rigidity and long-term stability while maintaining slim, modern aesthetics.

  • Outward-opening side-hung design promotes excellent cross-ventilation and daylight ingress with easy operation.

  • Ideal for bedrooms, living areas, kitchens, and coastal-facing openings where fresh air and clear views are priorities.

Technical illustration

Profile drawings for door and window frames plus a close-up of the glazing bead/profile communicate section geometry for precise specification and detailing.

Credentials

15+ years of experience | 180+ team members | 10,000+ projects—assuring delivery capability and dependable after-sales support for residential and commercial sites .

Click For Enquiry


Description

Overview

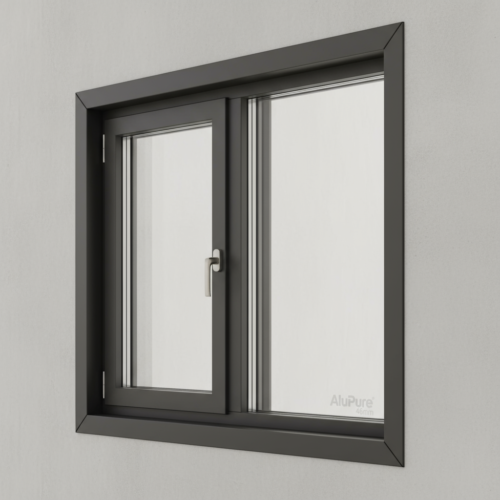

The Casement 46 is a 46 mm outward-opening, side-hung window system that blends style, strength, and functionality with a sleek, modern profile and enhanced structural integrity. Designed to maximize ventilation and natural light, it delivers clear sightlines and unobstructed views for contemporary interiors.
