AluPure Aluminium Systems — 31 MM Plus Sliding Window System, presented by Inspire Windoors.

Brand and presenter

• Brand: AluPure Aluminium Systems.

• Presented by: Inspire Windoors.

System type

• Tracks available: 2-Track and 3-Track configurations for versatile opening widths and panel combinations.

Track size

• 2-Track: 75 mm.

• 3-Track: 109 mm.

Sash dimensions

• Handle: 112 mm / 50 mm.

• Mullion: 70 mm / 31 mm.

• Intersection: 25 mm / 75 mm.

Frame capacity

• Maximum height: 2700 mm.

• Maximum width: 1200 mm per panel indicated.

Glass compatibility

• Minimum glass thickness: 6 mm.

• Maximum glass thickness: 22 mm.

Glass options

• Toughened glass: Heat-treated safety glass for higher impact resistance and safer break pattern in case of failure, suitable for high-traffic openings and tall panels.

• Security glass: Laminated safety glass with interlayer for enhanced burglary resistance, improved sound dampening, and safer retention if cracked.

• DGU glass: Double-glazed insulated unit for energy efficiency, better thermal comfort, and reduced condensation, ideal for west-facing and noise-exposed elevations.

• Security DGU glass: Laminated insulated glazing combining burglary resistance with thermal and acoustic performance for premium façades and ground-floor sliders.

Key benefits

• Slim 31 mm interlock for expansive views and a clean, contemporary aesthetic.

• Designed for wider apertures to enable smooth indoor–outdoor flow in premium residences and hospitality spaces.

• Multi-track flexibility supports increased ventilation and larger clear openings without bulky profiles.

Visual and technical highlights

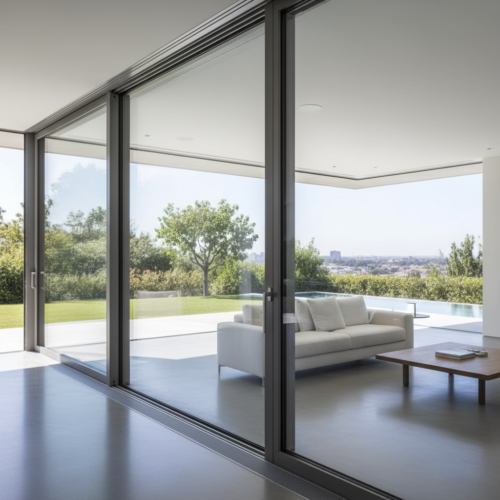

• Modern villa application imagery underscores luxury positioning and minimal sightlines.

• System drawings for 2-Track and 3-Track illustrate profile geometry and assembly logic for specification clarity.

Credentials

15+ years of experience | 180+ team members | 10,000+ projects delivered, reinforcing manufacturing depth and service capability for large and bespoke installations .

Ideal applications

Contemporary homes, villas, and premium hospitality projects seeking panoramic sliders with refined proportions, reliable operation, and glass flexibility from 6–22 mm.
